Every call runs the same six checks, in the same order.
Crosswater Appliance Service is an independent company repairing Sub-Zero refrigeration in Nocatee and across St. Johns County. One manufacturer, one method, published before you call.
Run in the same order, on every visit. From a meter at the receptacle to gauges on the sealed system — cheapest first, because the cheap stages are the ones that most often explain the symptom, and because a reading taken behind a blocked condenser cannot be interpreted at all.
The same axis on every page of this site: a stage number always means the same thing. Stage 6 is reached on a minority of visits — the five before it usually explain the fault.
A reading taken behind a blocked condenser describes the blockage.
A compressor working against a coil packed with dust and pet hair gives long run times, poor recovery, a warm cabinet and more noise — word for word, the complaint list of a failing sealed system. Measure the sealed system first and the numbers will agree with you. They will also be about the coil.
The same trap sits at the door: a cabinet pulling humid Florida air through one top corner, because the door has stopped closing flush over its last inch, runs a duty cycle that reads as lost capacity. A straightedge and an adjustment, settled at stage 3 rather than found after a part is ordered.
Weather has its place in the order too. Around 68 thunderstorm days a year cross north-east Florida, and the multi-day outages that came with Matthew in 2016, Irma in 2017 and Helene in 2024 left one signature: boards and inverter electronics that survived the event and failed weeks later. A stage 1 question, asked on the phone.
- Power and controls Stage 1 A meter and a question. No panel comes off.

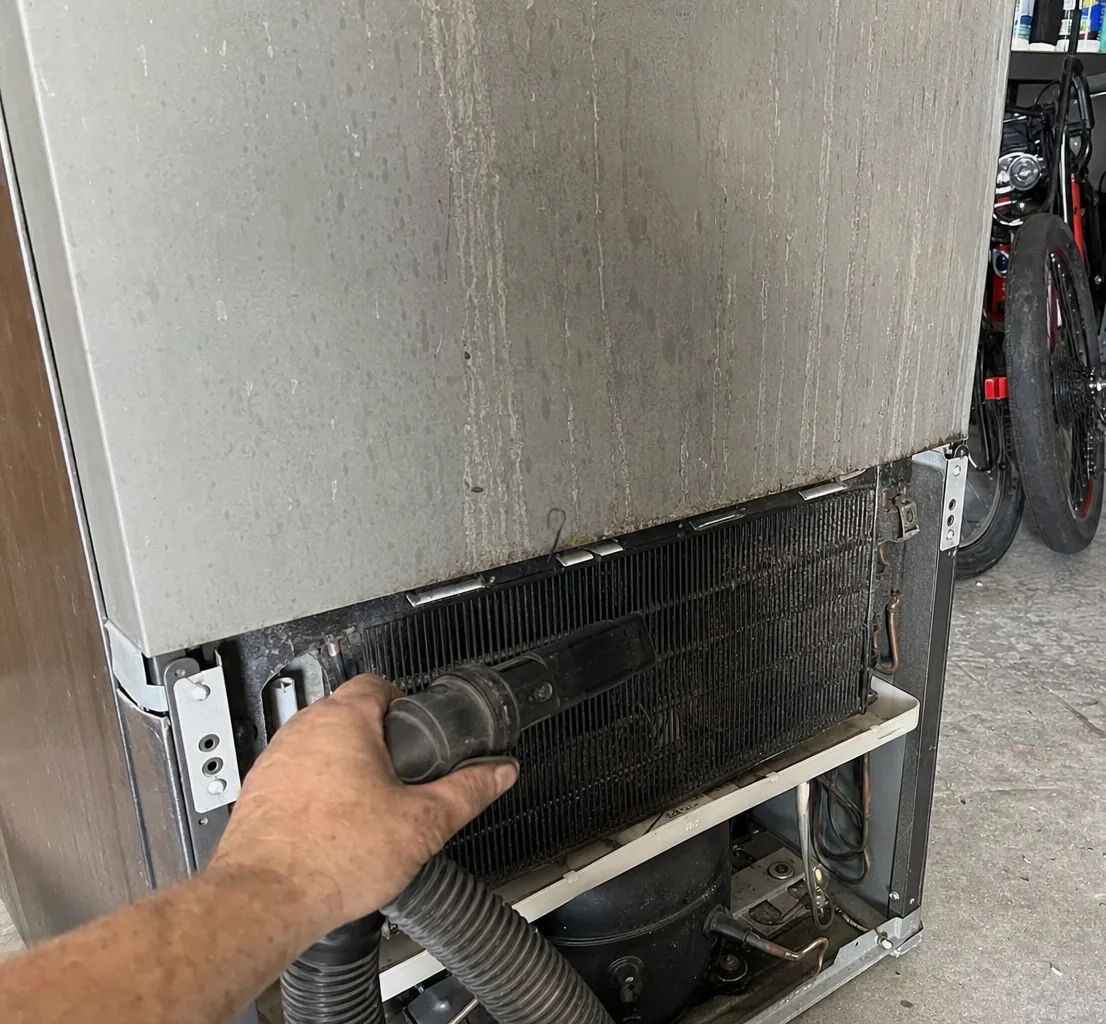

- Air and clearance Stage 2 A grille off and a light. Ten minutes.
- Door and seal Stage 3 A straightedge, a torch and a sheet of paper.
- Temperature and defrost Stage 4 Logged temperatures, and the patience to wait out a cycle.
- Fill and dispense Stage 5 A graduated vessel and a stopwatch.
- Sealed system Stage 6 Gauges, a recovery machine and EPA Section 608 certification.
Bar length is how far into the cabinet each stage reaches, on the same axis the sequence bar uses elsewhere on this site. Stage 5 applies only to units with a water connection.
What we repair
Sub-Zero refrigeration only: built-in refrigerators, integrated column refrigerators and freezers, undercounter refrigeration, wine storage units, ice makers. We turn down work on other brands rather than send a technician without the right parts.
- Built-in refrigeration
Sub-Zero Built-In Warm on the Food Side, Nocatee
Two refrigeration circuits in one cabinet, a condenser working against Florida heat, and a door heavy enough to change its own geometry.
Usually decided at stage 2 - Sealed systems
Sub-Zero Compressor Runs and Nothing Gets Cold
Compressor, condenser, evaporator and refrigerant faults — measured last, because five cheaper stages can each make a healthy circuit look sick.
Usually decided at stage 6 - Integrated columns
Sub-Zero Column Door Ajar Alarm at Night, Nocatee
Panel-hung doors, hinge and closer wear, and two cabinets side by side that share nothing but the joinery they are set into.
Usually decided at stage 3 - Undercounter units
Sub-Zero Undercounter Drawer Running Warm, Nocatee
Toe-kick airflow, island heat, drawer runners and a drain path that ends under the compressor — the faults that come with putting refrigeration in a base cabinet.
Usually decided at stage 2 - Wine storage
Sub-Zero Wine Zones Drifting Together, Nocatee
No water connection, no ice, no defrost drama — and four faults that quietly put a dual-zone cabinet out of specification without ever raising an alarm.
Usually decided at stage 4 - Ice makers
Sub-Zero Ice Maker Making Small Hollow Cubes
Cube size is a symptom, not a diagnosis. Fill volume is measured with a vessel and a stopwatch, and the freezer compartment is checked before any valve is quoted.
Usually decided at stage 5 - Filters and dispensers
Sub-Zero Dispenser Flow Slowing Week by Week
A cartridge is rated in gallons, not months. Where flow has dropped, the restriction is found by measurement — filter, valve, supply or dispenser line.
Usually decided at stage 5
And what we do not repair
Everything on this site is about the temperature inside a cabinet. We do not install or repair heating, air conditioning, heat pumps, air handlers or ductwork, and we are not a plumbing or electrical contractor. If the call is about the temperature of a room rather than the temperature of a cabinet, we are the wrong company and will say so on the phone. The condenser in a built-in fights the ambient heat of the kitchen around it, which is why room air comes up in the writing at all — but the room is somebody else's trade, and the machine that cools it is not ours to touch.
Terms, stated before the visit
- $80 flat diagnostic. Credited toward the repair if you go ahead with the work.
- Written estimate before any repair begins. No work starts without your approval.
- 90 days on labor, 365 days on parts. Genuine OEM parts.
- EPA Section 608 certified technicians — required to open, recover from and recharge a sealed refrigeration system.
7 villages, built out in phases.
What changes between the villages of 32081 is the age of the housing, and with it the equipment in the openings. Nocatee's first occupancies date to 2007 — 19 years on the first phase of built-in refrigeration, well past where original sealed-system labor coverage typically ends. That changes what stage 6 means when the sequence reaches it, not the diagnostic itself.
- Coastal Oaks
Coastal Oaks
A gated village of large kitchens, where a single call often covers three or four separate cabinets, each with its own opening and its own airflow.
- Crosswater
Crosswater
Inside our home ZIP, so travel is not a scheduling factor — and the whole six-stage sequence runs whether the call is for an ice maker or a warm cabinet.
- Twenty Mile
Twenty Mile
A village built across several years, so two homes a few hundred feet apart can hold equipment of quite different vintages — and different right answers.
- Del Webb Nocatee
Del Webb Nocatee
An age-restricted village of single-story homes and seasonal absences, where the two things that fail most are toe-kick airflow and anything left standing.
- Greenleaf Village
Greenleaf Village
One of the earlier addresses in 32081, where the cabinets have run long enough that lead times and remaining life belong in the estimate alongside the price.
- Seabrook Village
Seabrook Village
One of the newer villages in 32081, where most calls are not failures at all — they are installation, clearance and settling faults wearing an appliance costume.
The sequence, stage by stage
6 stages, one page each, in the order they are run. Each states what finishing it takes off the table — a diagnostic is worth as much for what it eliminates as for what it finds. Stage 5 applies only to units with a water connection; a wine cabinet skips it.
- Stage 1
Stage 1: Power and Controls on a Sub-Zero
Before anything is opened, we establish whether the cabinet is being told to run — and what has happened to its power since it last worked properly.
- Stage 2
Stage 2: Air, Condensers and Cabinet Clearance
The cheapest fault on the list and the most commonly missed — a cabinet that cannot reject its heat produces the entire symptom list of a failing compressor.
- Stage 3
Stage 3: Doors, Gaskets and Panel Weight
A door that has stopped pulling flush over its last inch produces frost, condensation and an endless duty cycle — and it is an adjustment, not a repair.
- Stage 4
Stage 4: Temperature, Frost and Defrost
What the cabinet is actually holding, measured over the visit rather than read once — and what the frost pattern on an evaporator is telling you.
- Stage 5
Stage 5: Fill Volume and Dispenser Flow
Measured with a graduated vessel and a stopwatch, because cube size is an opinion and fill volume is a number — and because the split tells you where to look.
- Stage 6
Stage 6: The Sealed System, and What It Costs
Last, because everything cheaper has already been eliminated — and because it is the only stage that legally requires EPA Section 608 certification.
What does a Sub-Zero repair cost in Nocatee?
$80 flat to diagnose, credited toward the repair once you approve it. Completed work on this page has landed between $240 and $650, parts and labor together. The firm figure is written down after the diagnosis, not before it.
| Repair | Typical range |
|---|---|
| Diagnostic visit, credited toward the repair | $80 |
| Door gasket or seal replacement | $250–$590 |
| Evaporator or condenser fan motor | $260–$570 |
| Defrost heater, thermostat or sensor | $250–$590 |
| Ice maker, water valve or supply line | $240–$650 |
Ranges are what this work has cost, not a quote. A range moves with the part version the serial number calls for and with what the cabinet turns out to need. The whole table is on the pricing page.
How much does Sub-Zero repair cost in Nocatee?
$80 flat to diagnose, credited toward the work. Completed repairs in this category have run $240 to $650, parts and labor together. The band your cabinet lands in is written into the estimate before anything is ordered.
Does the 50% rule apply to a built-in?
Rarely on a full-size cabinet. The dearest repair in the book, $2,270, is about 20% of the cheapest comparable replacement at $11,600, and panels and cabinetry sit on top of that figure. On a wine or undercounter unit it becomes a real test.
When is the cabinet not worth repairing?
When the part is discontinued, when the lead time is longer than you can live with, or when the figure is a large fraction of a replacement. A sealed-system repair runs $910–$2,270, and the estimate says plainly when that is the wrong side of the comparison.
Three calls that ran the sequence
Written by owners in 32081 after the visit, published with a first name and an initial. The owner notes page carries the most recent of them in full.
4.64.6 out of 5 — the mean of all 60 reviews collected after a visit
4 out of 5
Our 48-inch built-in was holding freezer temperature but the fresh food side crept into the fifties. He pulled the toe kick, showed me the condenser packed with retriever hair, cleaned it and rechecked airflow before he left.
Marissa T.April 2026
5 out of 5
Both columns are behind flush cabinetry so I was nervous about anyone pulling them. He removed the panel carefully, worked at the appliance, and put the alignment back exactly as it had been. No marks anywhere.
Xavier N.January 2026
5 out of 5
Water at the dispenser slowed to a trickle right after we swapped the filter ourselves. The housing had never seated and the bypass was still partly engaged. He reseated it and showed us how, so we do not repeat the mistake.
Gordon P.March 2026
Read the owner notes in full →
$80 flat, credited toward the repair.
Written estimate before any repair begins. No work starts without your approval. A mobile operation working out of 32081 and roughly 40 miles around it.
